Crafting a comprehensive environmental monitoring solution is our passion. Our SenAir Controller epitomizes technical excellence, ensuring precise data collection while enhancing your operational efficiency.
Revolutionize how you monitor environmental parameters. The SenAir Controller offers unparalleled remote access, allowing you to oversee air quality conditions seamlessly without the need for on-site checks. Utilize advanced SCADA and web integration to manage and control your systems securely, ensuring optimal performance and responsiveness.

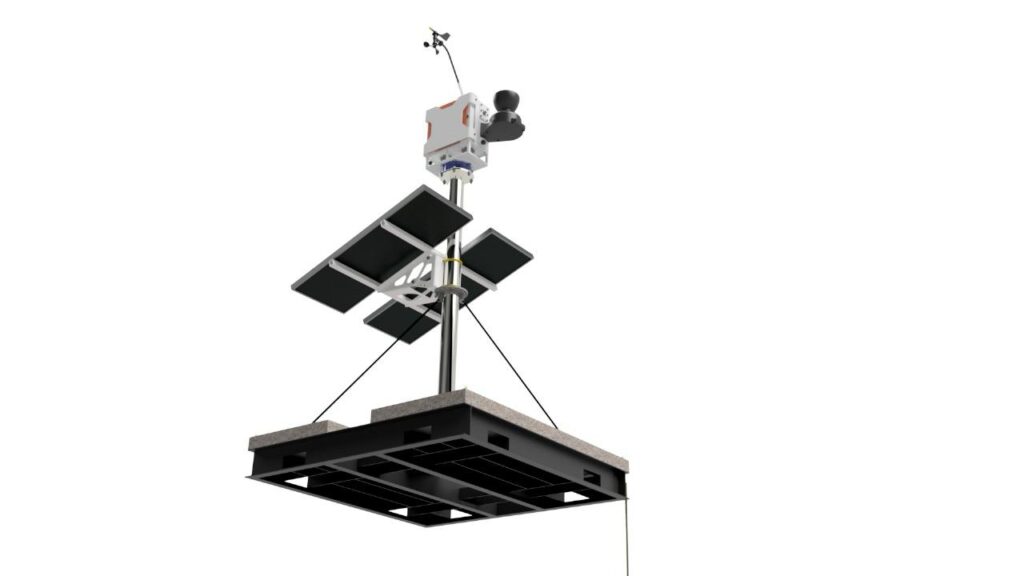

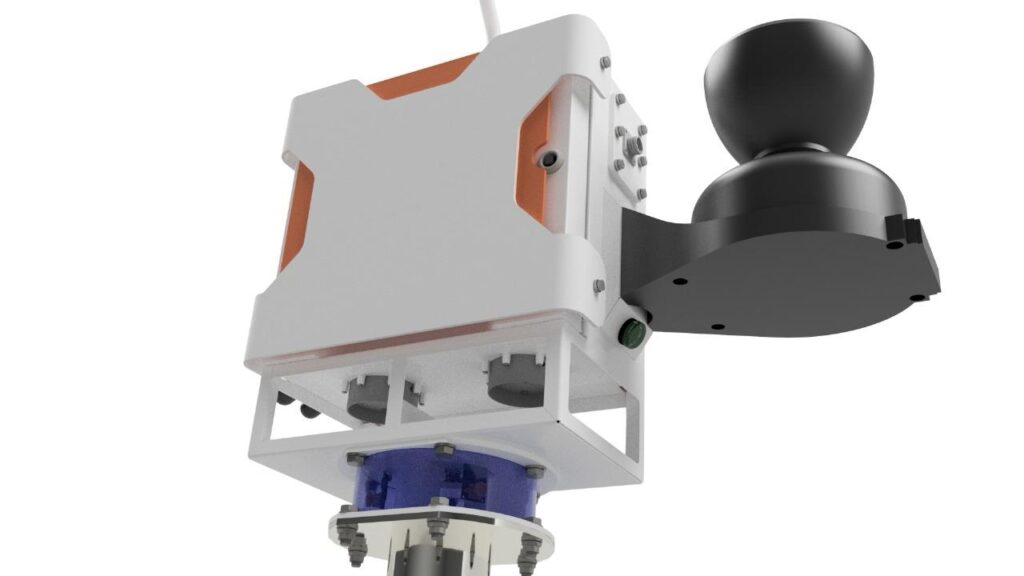

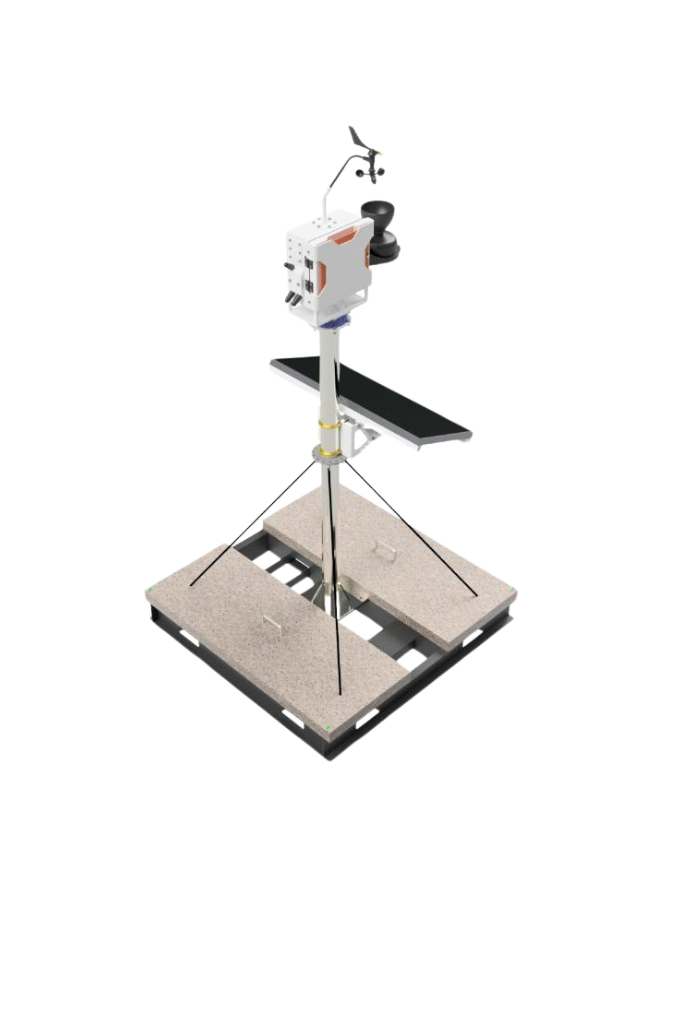

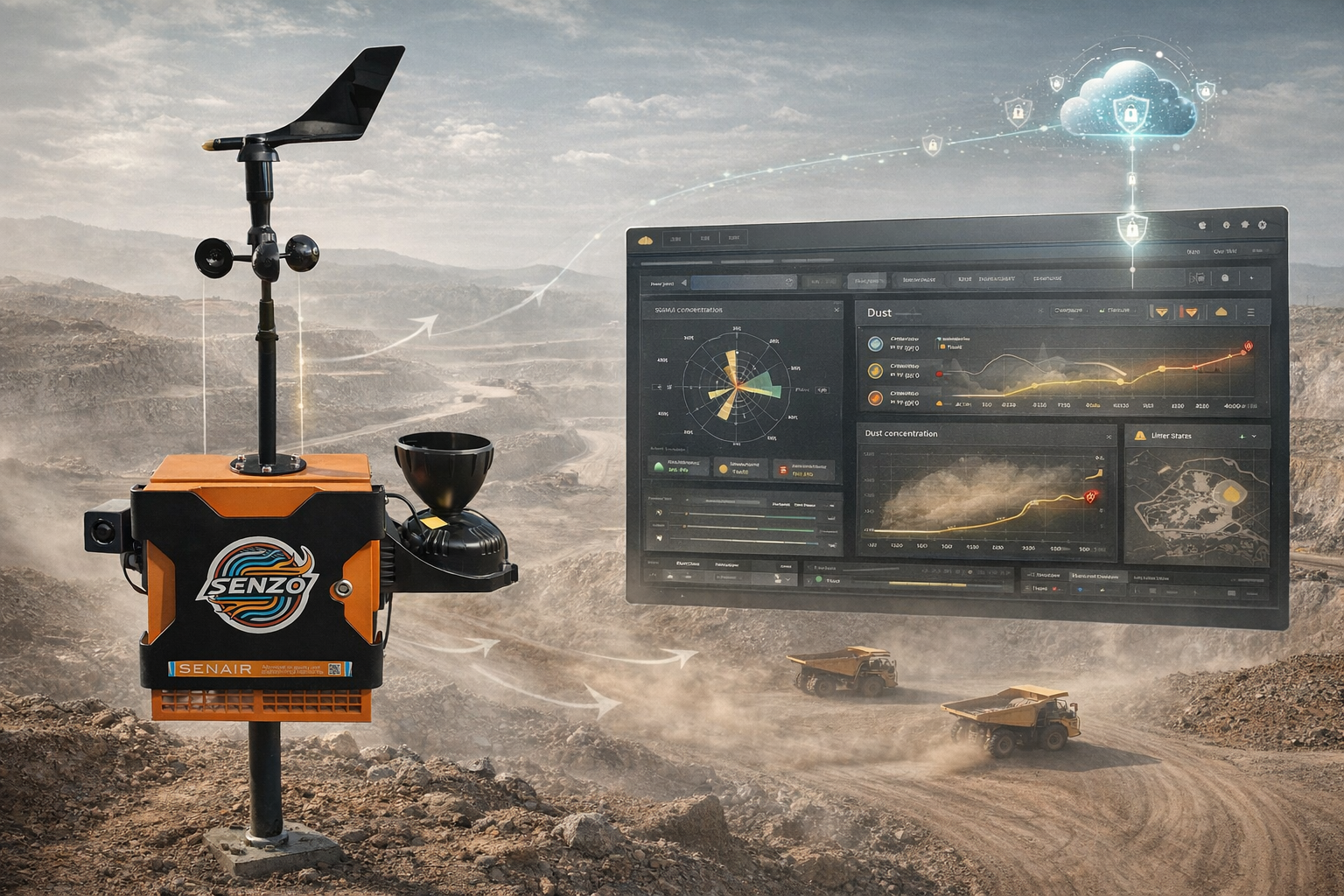

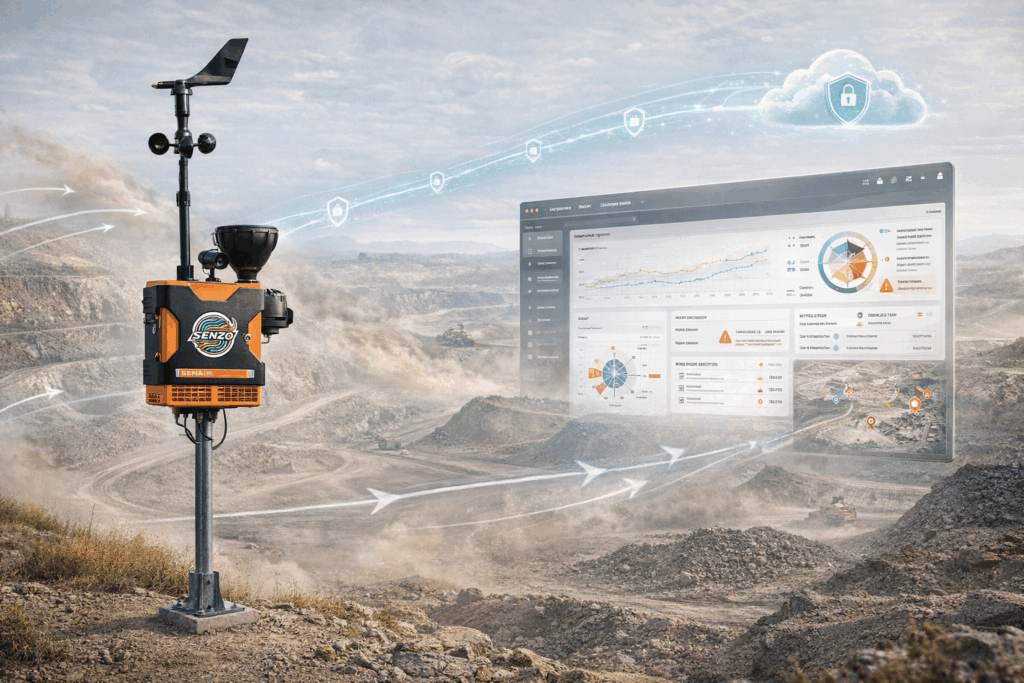

SENAIR CONTROLLER

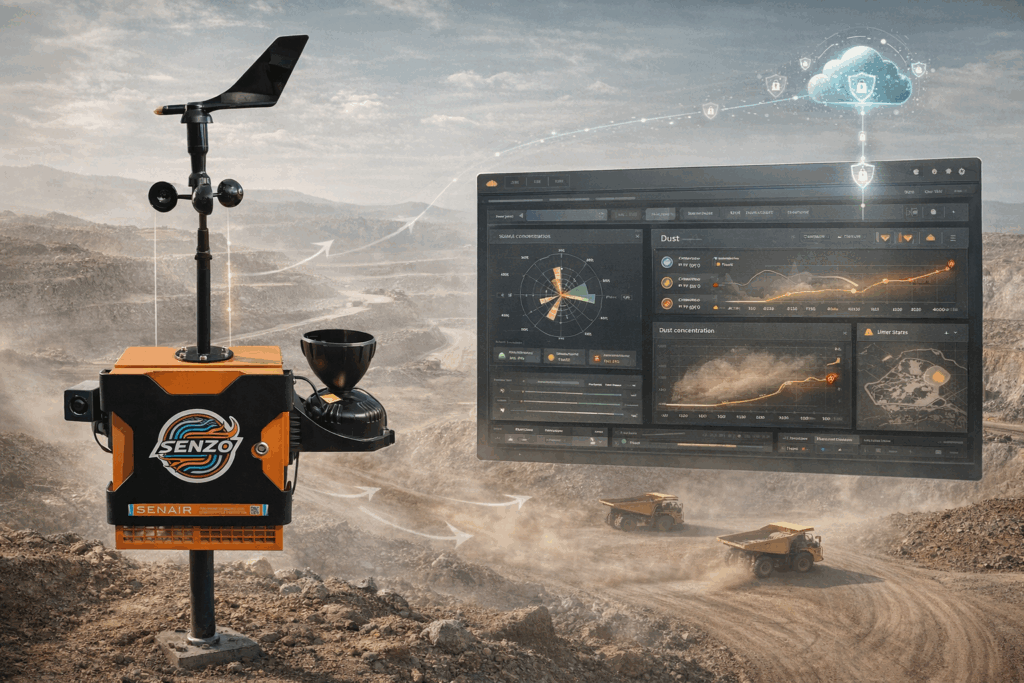

The SenAir Controller is an advanced air quality and environmental
monitoring system designed for efficient remote telemetry,
management, and modularity.
- Remote Access: Eliminates on-site inspections with real-time monitoring and control.
- SCADA and Web Integration: SCADA-compatible with secured cloud-based web monitoring, control and remote diagnostics.
- Compact and Interchangeable Design: Minimises downtime and enhances efficiency.
- Sensor Monitoring: Tracks settings, faults, storage, and system status.
- Network and Communication: Supports Ethernet (Modbus TCP, PROFINET), RS485, CANBUS, and 3G/4G with WiFi.
- Security: Multi-tier user access (Admin, Engineer, User, View Only) with SSL encryption.
- Storage and Memory: 64GB Industrial SD, 32MB Flash, and EEPROM storage.
- Environmental Durability: IP65 rated, -5°C to +65°C operating temperature, and humidity tolerance up to 96%.
- Technical Specifications:
- Power Input:
- Solar Panel.
- 24VDC (18-30VDC).
- Power Input:
- Battery: Lithium Ferro Battery pack
- I/O Support: 4x Digital Inputs, 2x Analog Inputs; 4x Relay Outputs, 4x Digital Outputs.
- Standard Sensor Configuration:
- Dual Particulate Matter sensors (PM1, PM2.5, PM4, PM10)
- Temperature (Ambient and Enclosure)
- Relative Humidity
- Pressure
- Wind Speed
- Wind Direction
- Precipitation
- Total Volatile Organic Compounds (tVOC)
- Nitrogen Oxides (NOx)
- Location (Latitude, Longitude)
- Optional Sensors:
- Hydrogen Sulfide (H2S)
- 360° Camera: Enables visual confirmation of atmospheric conditions.
- Image triggerable on integrated alert activation or manual.
- Integrated Alerts:
- Alerts can be triggered for any limit exceedance of any of the Sensor measurements.

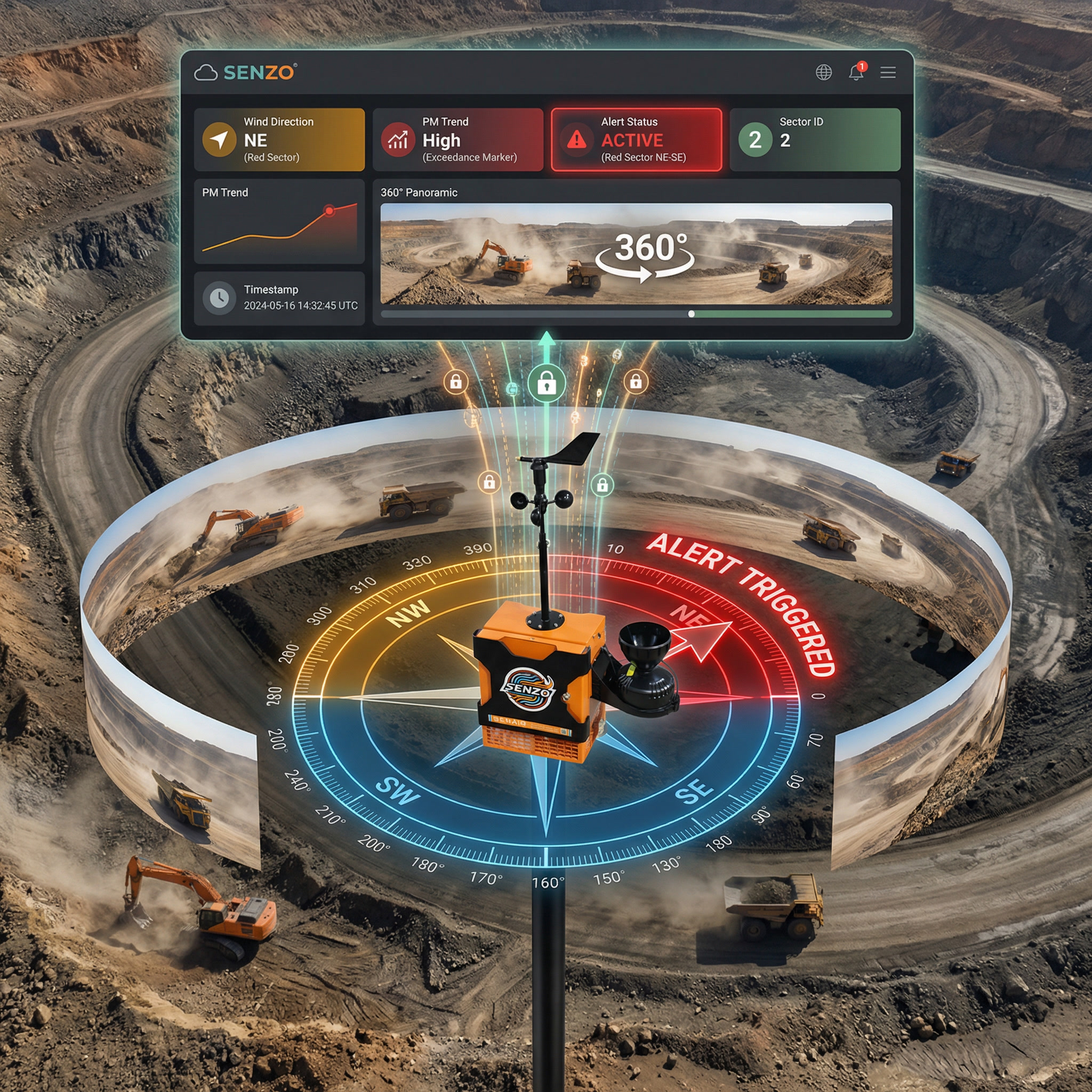

- Alerts can be combined with any/all of the 3x programmable wind direction zone. This enables the unit to activate an alert only when the specific sensor alert conditions are inside the specified wind direction.
- Integrated Webserver: Enables browser-based monitoring and control.
- Diagnostics: Real-time tracking of alarms, connection status, and system health.
- Modular Design: Allows for easy incorporation of additional sensors.
- Environmental Durability: IP65 rated, -10°C to +60°C operating temperature, and humidity tolerance up to 96%.
- Power Input: 24VDC (18-30VDC).
- I/O Support: 8x Digital Inputs, 8x Analog Inputs (4x HART-enabled), 4x Relay Outputs, 8x Digital Outputs.
- Temperature Control: Supports 4x PT100 and 4x NTC thermocouples.
- Integrated Webserver: Enables browser-based monitoring and control, setup and diagnostics on Controller.
- Diagnostics: Real-time tracking of alarms, connection status, and system health.
The SENAIR CONTROLLER provides a robust, secure, and efficient
solution for remote environmental monitoring. Its real-time monitoring,
automated diagnostics, and industrial connectivity make it ideal for
various applications in the environmental monitoring industry.
